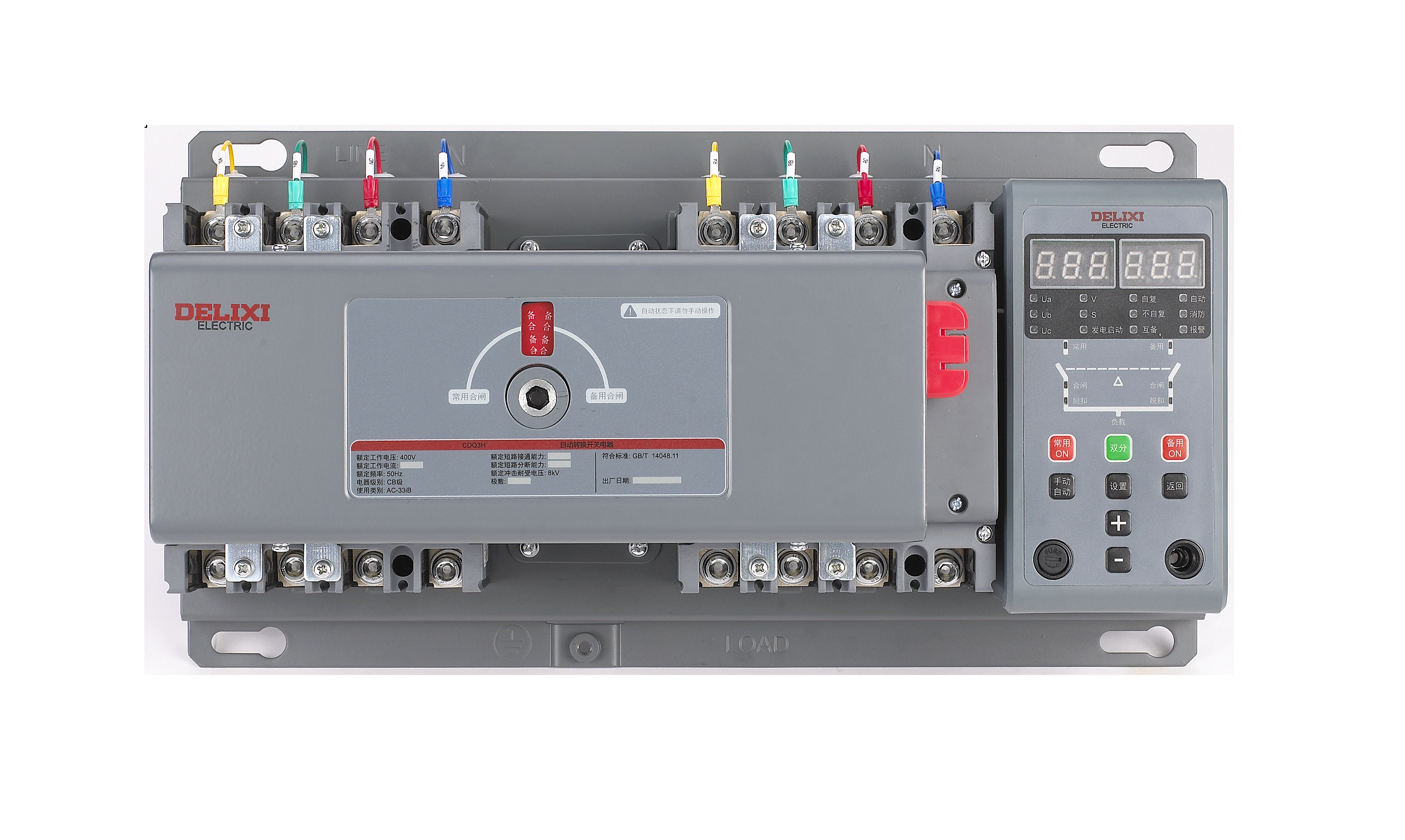

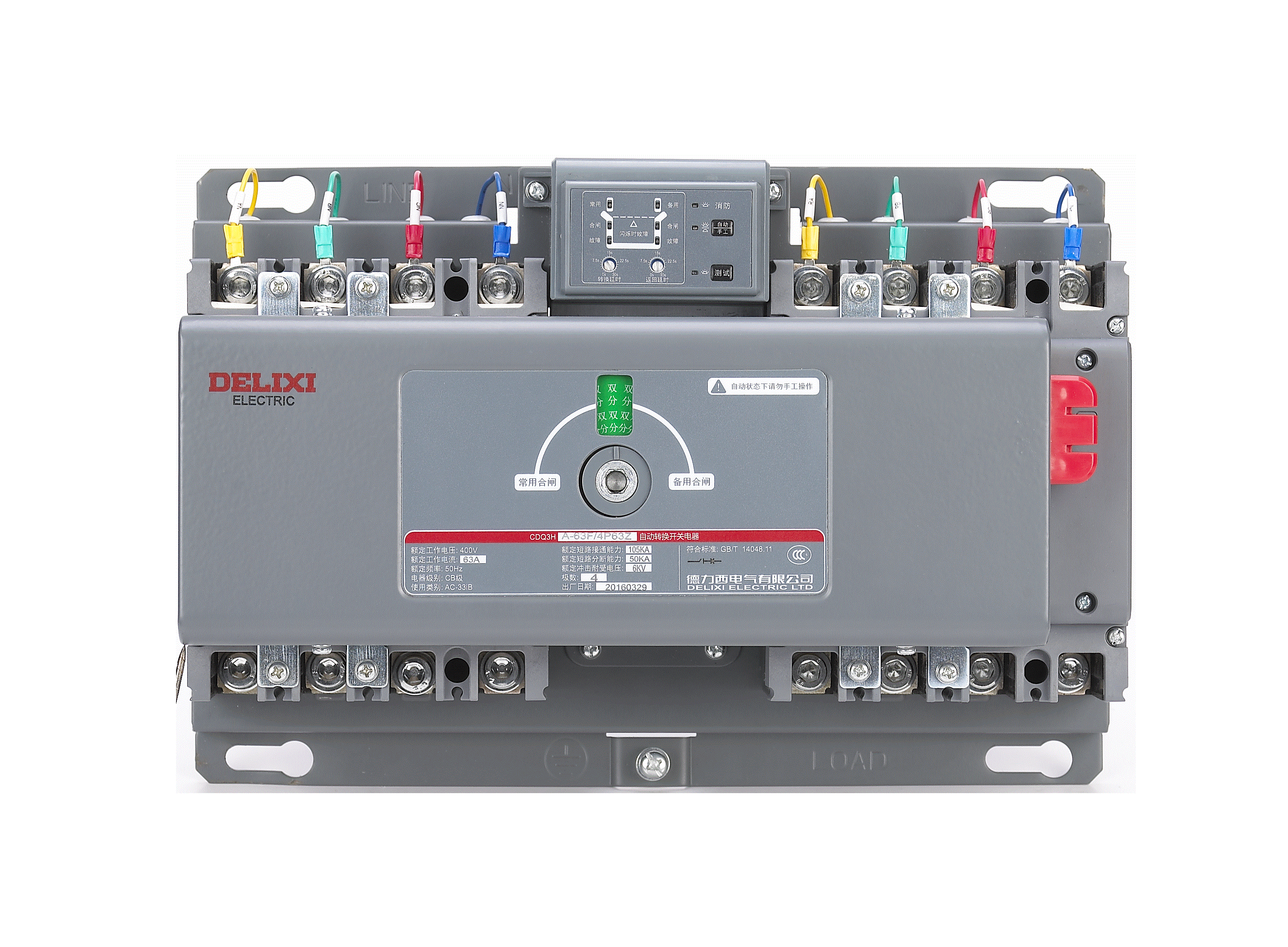

Home page >Products >Power Distribution Products >Power Distribution >Automatic Transfer Switching Equipment (ATS) >Cb-level Automatic Transfer Switching Equipment >CDQ3H Series (Moulded Case Type) Dual Power Automatic Transfer Switching Equipment
To realize automatic switching between normal power supply (I) and standby power supply (I) (manual switching can also be set). The power supply can be automatically switched due to power failure or abnormality (undervoltage, overvoltage, or voltage loss) of one power supply to ensure the continuity, reliability and safety of power supply. The current capacity is 63, 100, 250, 400, 630A, 800A, and the electric operating mechanism adopts the motor (single-phase AC) to realize the power supply switching through the power-on/off actions driven by the forward and reverse rotation of the motor.
