Home page >Products >Industrial Control >Motor Control And Protection >Motor Controller >CDXH-3 Automatic Load Limiting Automatic Controller

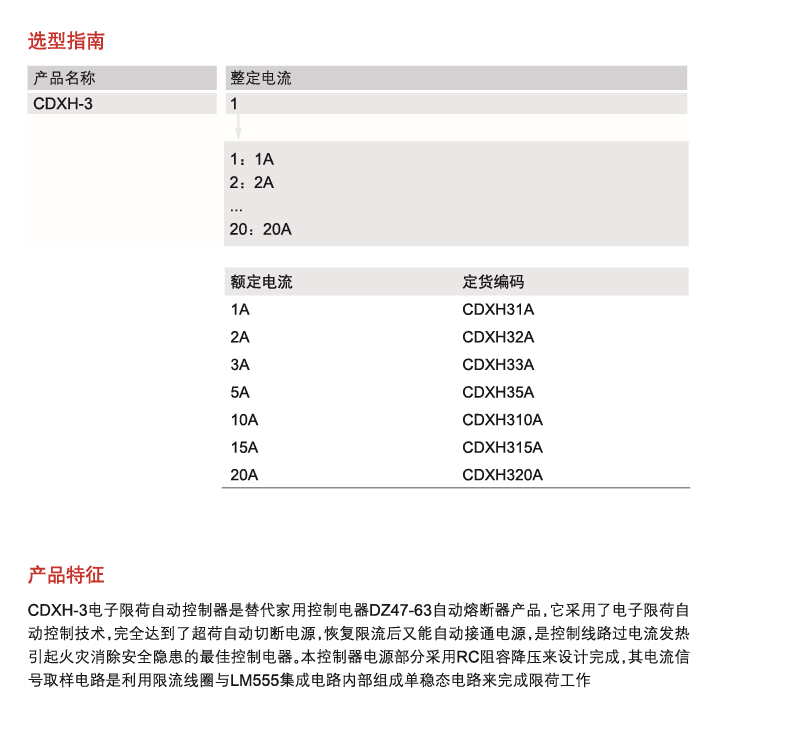

CDXH-3 electronic load limiting automatic controller is an alternative of the household control electrical appliances DZ47-63 automatic fuse product. With electronic load limiting automatic control technology, it can completely cut off the power supply automatically in case of overload, and can turn on the power supply automatically after restoring the current limit, which is the optimal control electrical appliance to eliminate safety hazards of fire caused by overcurrent heating of the control line. The power supply part of this controller is designed with resistance capacitance voltage-reducing, and the current signal sampling circuit realizes the load limit through the current limiting coil and the LM555 integrated circuit to form a monostable circuit internally.
