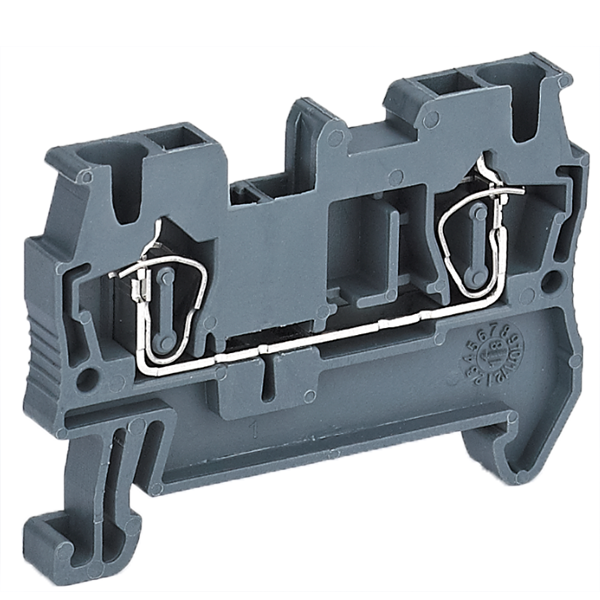

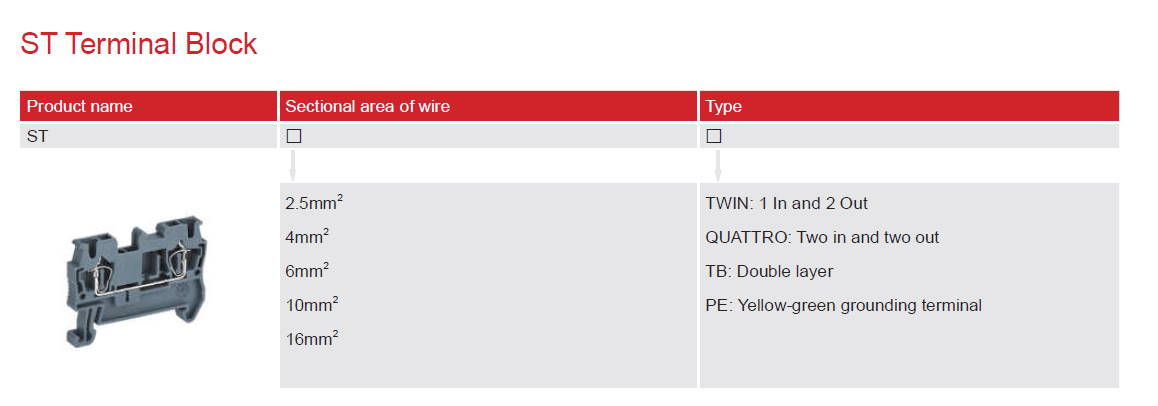

ST pull-back spring terminal block adopts a general spring wiring technology. With high compression force, excellent shock resistance and air tightness, this product can ensure the long-term stability of the wire connection. The compact top inlet provides more easy operation. The spring can be opened with a standard flathead screwdriver. Insert the wire into the terminal connector and remove the screwdriver, so the wiring connection is completed. The pull-back spring terminal has a large wiring capacity, the wire with a rated wire diameter can also be directly connected or connected via a cold press head. The insulation material adopts flame retardant nylon with good insulation and aging resistance; the rated operating voltage is 800V. The rated cross-sectional area of the connecting wire is 0.5 mm2 ~ 16 mm2.
