Home page >Products >Power Distribution Products >Final Distribution >Miniature Circuit Breaker >Miniaturee Standard Circuit Breaker >CDBNE-100GQF Photovoltaic Grid-Connected Circuit Breaker

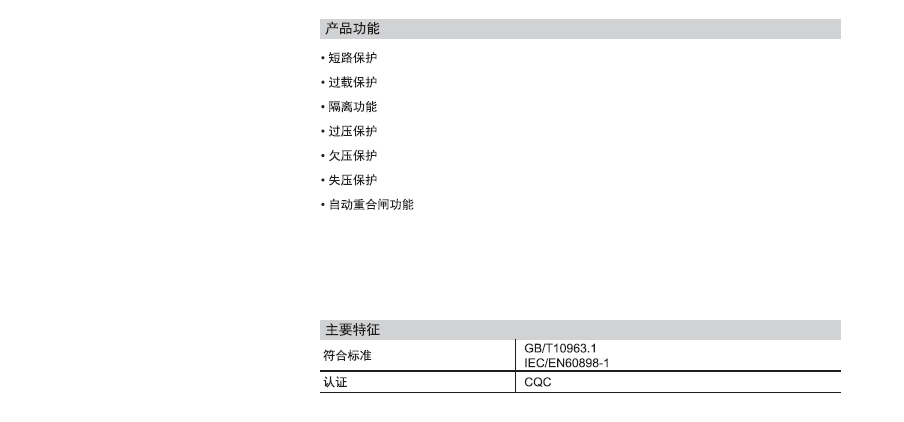

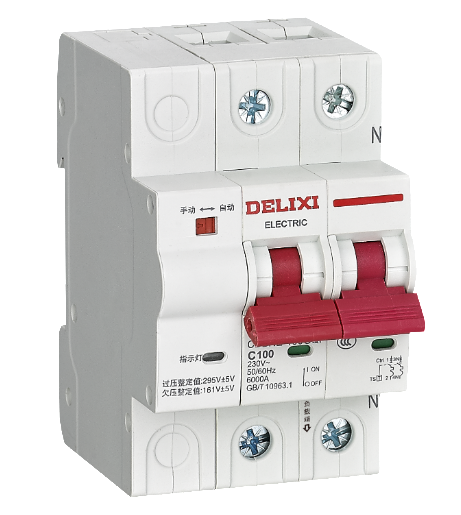

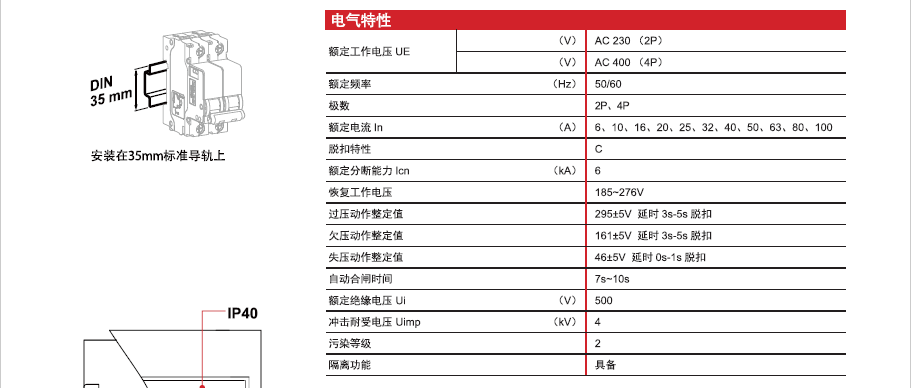

CDBNE-100GQF photovoltaic grid-connected circuit breaker (hereinafter referred to as circuit breaker) is suitable for distributed photovoltaic household grid-connected box. The circuit breaker detects and judges the voltage on the photovoltaic power generation side for automatic opening delay in case of faults such as overvoltage, undervoltage or voltage loss, and for automatic closing operation when the voltage restores to normal. Meanwhile, the circuit breaker has also short-circuit protection, overload protection and isolation functions of the lines. The product is suitable for lines with a rated frequency 50/60Hz, a rated working voltage 230/400V, and a rated working current 100A and below.
